s Standard Rubber Industrial Timing Belt for Industrial Applications

Name: s Standard Rubber Industrial Timing Belt for Industrial Applications
Brand: SINOCONVE
SKU: SINOCONVE
Price: 4.03 USD
Availability: InStock
Rating: 4.9 (153 reviews)

Product Details

Place of Origin: China

Brand Name: SINOCONVE

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $4.03/pieces 10-49 pieces

Packaging Details: Rubber Industrial Timing Belt is packed in carton

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	None	Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail
Standard Or Nonstandard:	Standard	Type:	TIMING BELT
Material:	Rubber, CR+Glass Fiber+Fabric	Product Name:	Timing Belt
Working Temperature:	-25℃ ------ +110℃	MOQ:	500
Packing:	In Carton	Color:	Black
Certificate:	ISO/TS16949, ISO 9001	Country Of Origin:	China
Model:	HTD8M	Port:	Ningbo/Shanghai

Warranty:	None
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail
Standard Or Nonstandard:	Standard
Type:	TIMING BELT
Material:	Rubber, CR+Glass Fiber+Fabric
Product Name:	Timing Belt
Working Temperature:	-25℃ ------ +110℃
MOQ:	500
Packing:	In Carton
Color:	Black
Certificate:	ISO/TS16949, ISO 9001
Country Of Origin:	China
Model:	HTD8M
Port:	Ningbo/Shanghai

s Standard Rubber Industrial Timing Belt for Industrial Applications

Product Description

Property

-- Excellent dynamic curve performance

-- Crack resistant

-- Ozone resistant

-- Anti-aging

-- Heat resistant

-- Wear resistant

Structure

Belt body: high quality synthetic CR rubber

Reinforcement: excellent quality fiberglass cord

Belt teeth: protected by highly wear resistant nylon elastic fabric

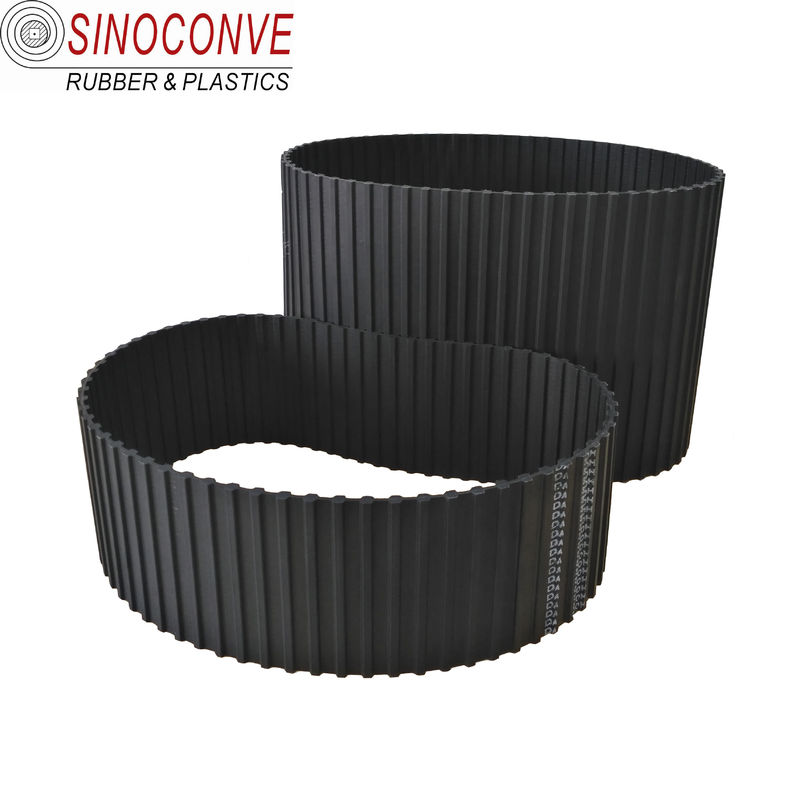

Double sided timing belt

Double sided timing belt can be divided into two types:

-- DA with symmetrical teeth

-- DB with staggered teeth

Timing belt sleeve

Height: 450mm
MOQ: 1 sleeve
Sleeve cutting machine is available

Open end rubber timing belt

L,H,MXL,XL,XH,XXH
T5,T10,T20
HTD-3M,HTD-5M,HTD-8M,HTD-14M,HTD-20M
STPD/STS-3M,5M,8M,14M,20M
RPP/HPPD-3M,5M,8M,14M

Specification

T-toothed timing belt

TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
TYPE		Pb	2y°	s	hg	rr	ra	teeth number range	Pitch length	H
MXL	2.023	40	1.14	0.51	0.13	0.13	1.14	43~2044	87.38~4153.41
XXL	3.175	50	1.73	0.76	0.20	0.20	1.52	46~124	146.05~393.70
XL	5.085	50		2.57	1.27	0.38	0.38	2.3	22~510	111.76~2590.80
L	9.525	40	4.65	1.91	0.51	0.51	3.6	23~530	219.08~5048.25
H	12.700			6.12	2.29	1.02	1.02	4.3	29~440	368.30~5588.00
XH	22.225			12.57	6.35	1.57	1.57	11.2	53~220	1177.93~4889.50
XXH	31.750			19.05	9.53	2.29	2.29	15.7	56~144	1778.00~4572.00
T2.5	2.5	40	1.50	0.70	0.2	0.2	1.3	42~312	105.00~780.00
T5	5			2.65	1.20	0.4	0.4	2.2	30~400	150.00~2000.00
T10	10			5.30	2.50	0.6	0.6	4.5	34~536	340.00~5360.00
T20	20			10.15	5.00	0.8	0.8	8.0	61~181	1220.00~3620.00

HTD-toothed timing belt

TYPE	Pitch	Bottom tooth thickness	Tooth height	Fillet radius	Fillet	Tip	Belt thickness	Teeth number range	Pitch length


		Pb	s	hg	rbb	rr	ra			H
S2M	2	1.3	0.76	1.3	0.2	0.2	1.36	44~1914	88.00~3828.00
S3M	3	1.95	1.14	1.95	0.3	0.3	1.94	41~500	123.00~1500.00
S4.5M	4.5	2.93	1.71	2.93	0.45	0.45	2.81	40~201	180.00~904.50
S5M	5	3.25	1.91	3.25	0.5	0.5	3.41	30~560	150.00~2800.00
S8M	8	5.2	3.05	5.2	0.8	0.8	5.3	53~500	424.00~4000.00
S14M	14	9.1	5.3	9.1	1.4	1.4	10.2	69~322	966.00~4508.00

STPD/STS-toothed timing belt

TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt	teeth number range	Pitch length
	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip					thickness
		Pb	2y°	s	hg	rr	ra			H
3M	3	14	1.78	1.17	0.24-0.30	0.87	2.4	35~1000	105.00 ~3000.00
5M	5			3.05	2.06	0.40-0.44	1.49	3.8	35~852	175.00 ~4260.00
8M	8			5.15	3.36	0.64-0.76	2.46	6	36~565	288.00 ~4520.00
14M	14			9.4	6.02	1.20-1.35	4.5	10	56~340	784.00 ~4760.00
20M	20			14	8.4	1.77-2.01	6.5	13.2	100~260	2000.00 ~5200.00

RPP/HPPD-toothed
timing belt

TYPE	Pitch	Bottom tooth thickness	Tooth height	Beltthickness	Teeth number range	Pitch length
TYPE		Pb	s	hg	Teeth number range	Pitch length	H
P2M	2	1.3	0.73	1.3	56~612	112.00~1224.00
P3M	3	1.95	1.09	2.1	30~621	90.00~1863.00
P5M	5	3.25	1.81	3.6	36~400	180.00~2000.00
P8M	8	5.2	2.9	5.5	40~550	320.00~4400.00
P14M	14	9.5	6	10	69~327	966.00~4578.00

Wrapped V belt

O,Z,M,A,B,C,D,E

SPZ,SPA,SPB,SPC,

3V,5V,8V,3L,4L,5L

MOQ: 50pcs

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC

AX10X,AV13X,AV15X,AV17X,AV22X

3VX,5VX,8VX

MOQ:50pcs

Poly ribbed PK belt

3PK,4PK,5PK,6PK,7PK,8PK,9PK,10PK

110PJ,220PJ,330PJ for washer machine

6PH1930,6PH1915 for dryer machine

MOQ:50pcs

Applications

Q1.Can I have a sample order for Timing belt?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.

Q3. Do you have any MOQ limit for V belt order?

Low MOQ, 1pc for sample checking is available

Q4. Is it OK to print my logo on V belt product?

Yes. Please inform us your logo or design before mass production

Q5. How to guarantee your quality?

We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
