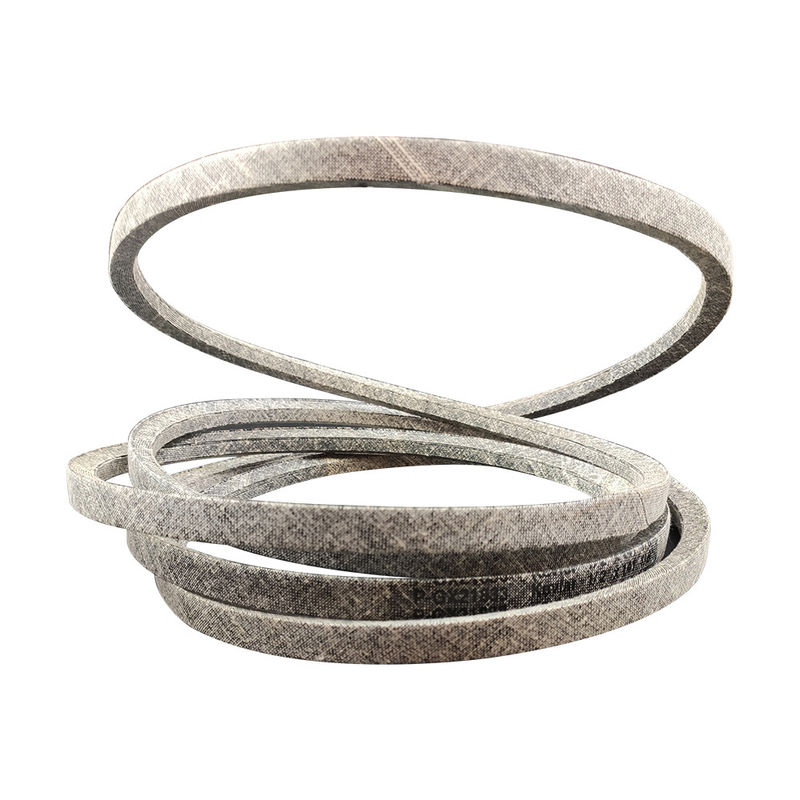

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission

Product Details

Place of Origin: Zhejiang, China

Brand Name: SINOCONVE

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 50 pieces

Price: $1.86/pieces 50-99 pieces

Packaging Details: Fan v belts are packed in carton
carton size: 65x37x26cm

Get Best Price
Highlight:
Warranty:
None
Applicable Industries:
Retail, Energy & Mining
Standard Or Nonstandard:
Standard
Type:
V-BELT, A,B,C,D,E,SPA,SPB,SPC,SPZ
Material:
Rubber
Product Name:
Lawn Mower Belt
Temperature Range:
-55℃ To 70℃
Outside Fabric::
Polyester Cotton Canvas
Reinforcement:
Polyester Cord
Top Rubber:
NR,SBR
Size:
A50,A56,B98,C112,
Application:
Wedge V Belt
Key Words:
V Belt Price
Warranty:
None
Applicable Industries:
Retail, Energy & Mining
Standard Or Nonstandard:
Standard
Type:
V-BELT, A,B,C,D,E,SPA,SPB,SPC,SPZ
Material:
Rubber
Product Name:
Lawn Mower Belt
Temperature Range:
-55℃ To 70℃
Outside Fabric::
Polyester Cotton Canvas
Reinforcement:
Polyester Cord
Top Rubber:
NR,SBR
Size:
A50,A56,B98,C112,
Application:
Wedge V Belt
Key Words:
V Belt Price
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission
Product Description
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 0

Property

--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant

Structure

Top rubber: NR,SBR
Reinforcement: Polyester cord
Buffer rubber: NR,SBR
Bottom rubber: NR,SBR
Outside fabric: Polyester cotton canvas

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 1
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 2

Applications

-- Blending systems

-- Choppers

-- HVAC systems
-- Lawnmowers

-- Compressors

-- Crushers

-- Scarifier

Specification

Classical V belt:

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 3
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 4
Type
Top width
Pitch width
Height
Length range
Angle
mm
mm
mm
mm
Z/M/FM/O
10
8.5
6
280---2480
40°
A
13
11
8
330---8000
40°
B
17
14
11
457---17000
40°
C
22
19
14
700---17000
40°
D
32
27
19
1100---17000
40°
E
38
32
23
3300---17000
40°

Narrow V belt:

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 5
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 6
Type
Top width
Pitch width
Height
Length range
Angle
mm
mm
mm
mm
3V
9.5
/
8
375--3353
40°
5V
16
/
13.5
795---17000
40°
8V
25.5
/
23
2500---17000
40°
SPZ
10
8
8
375---3353
40°
SPA
13
11
10
475---7200
40°
SPB
17
14
14
750---17000
40°
SPC
22
19
18
1350---17000
40°

Other special types:

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 7
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 8
Type
Top width
Pitch width
Height
Angle
mm
mm
mm
3L
9.8
/
5.6
40°
4L
12.7
/
8
40°
5L
16.8
/
10.5
40°
8.5*8
10.5
8.5
8
40°

Banded Jointed Rubber V belt:

Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 9
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 10
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 11
You may like
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 12

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC
AX10X,AV13X,AV15X,AV17X,AV22X
3VX,5VX,8VX
MOQ:50pcs
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 13

Poly ribbed PK belt

3PK,4PK,5PK,6PK,7PK,8PK,9PK,10PK
110PJ,220PJ,330PJ for washer machine
6PH1930,6PH1915 for dryer machine
MOQ:50pcs
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 14

Industrial Rubber timing belt

L,H,MXL,XL,XH,XXH
T5,T10
HTD3M,5M,8M,14M
MOQ:50pcs
Production process
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 15
Energy Mining Standard Wrapped Rubber V Belt for Mower Pulley Power Transmission 16
FAQ

Q1. Can I have a sample order for V belt?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.

Q3. Do you have any MOQ limit for V belt order?

Low MOQ, 1pc for sample checking is available

Q4. Is it OK to print my logo on V belt product?

 Yes. Please inform us your logo or design before mass production

Q5. How to guarantee your quality?

We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
