-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
Product Details
Place of Origin: China
Payment & Shipping Terms
Minimum Order Quantity: 50 meters
Price: $20.00/meters >=50 meters
Packaging Details: --- Maximum 500m per roll for rubber EP conveyor belts
--- Cassette package is available for abrasion resistant conveyor belts
--- One 20" container can load 6--8 rolls DIN-Y conveyor belts
--- One 40" container can load 8--10 roll
Applicable Industries: |
Construction Works , Energy & Mining |
Showroom Location: |
None |
Condition: |
New |
Material: |
Rubber, Rubber + EP Fabric |
Material Feature: |
Heat Resistant |
Structure: |
Belt Conveyor |
Power: |
None |
Warranty: |
1 Year, 1 YEAER |
Width Or Diameter: |
500mm-1000mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Conveyor Belt |
Weight (KG): |
100 Kg |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas, Online Support |
Product Name: |
Transport Conveyor Belt |
Feature: |
Abrasion Resistant |
Application: |
Cement, Crusher Plant, Mining,port |
Certificate: |
ISO9001, ISO14001 |
Standards: |
HG/T 4062--2008,DIN22102, SANS1173, JIS K6322 |
Working Temperature: |
-30℃ ------ +80℃ |
DIN Quality: |
DIN22102-Y,W,X |
After Warranty Service: |
Video Technical Support, Online Support |
Local Service Location: |
None |
Port: |
Ningbo/Shanghai |
Applicable Industries: |
Construction Works , Energy & Mining |
Showroom Location: |
None |
Condition: |
New |
Material: |
Rubber, Rubber + EP Fabric |
Material Feature: |
Heat Resistant |
Structure: |
Belt Conveyor |
Power: |
None |
Warranty: |
1 Year, 1 YEAER |
Width Or Diameter: |
500mm-1000mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Conveyor Belt |
Weight (KG): |
100 Kg |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas, Online Support |
Product Name: |
Transport Conveyor Belt |
Feature: |
Abrasion Resistant |
Application: |
Cement, Crusher Plant, Mining,port |
Certificate: |
ISO9001, ISO14001 |
Standards: |
HG/T 4062--2008,DIN22102, SANS1173, JIS K6322 |
Working Temperature: |
-30℃ ------ +80℃ |
DIN Quality: |
DIN22102-Y,W,X |
After Warranty Service: |
Video Technical Support, Online Support |
Local Service Location: |
None |
Port: |
Ningbo/Shanghai |

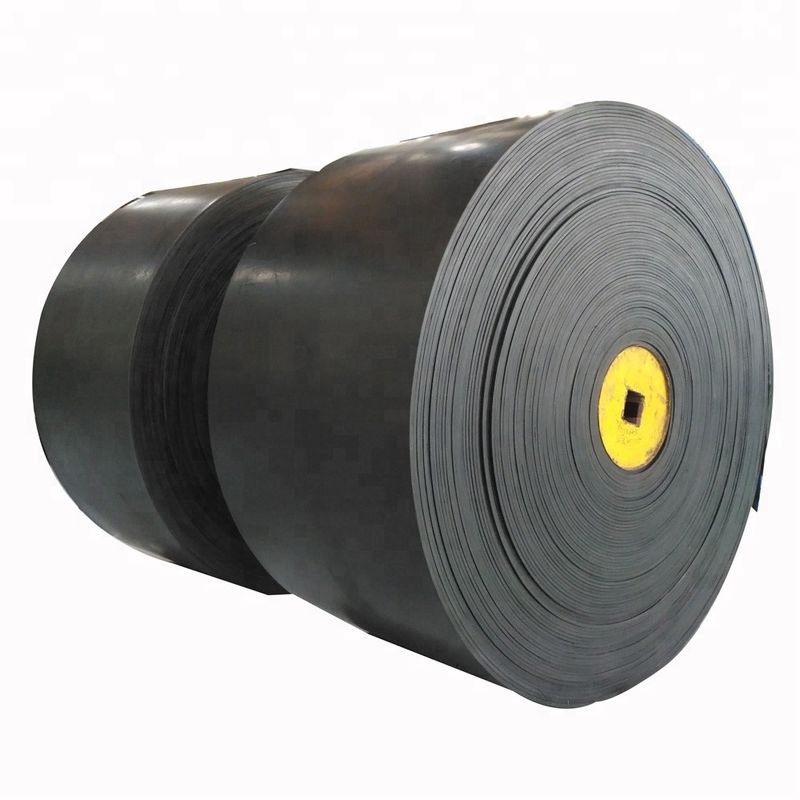

SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.
-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
|
Cover Rubber grade
|
8MPA,10MPA,12MPA,15MPA
18MPA,20MPA,24MPA,26MPA
|
DIN-X,Y,W
RMA-1,RMA-2
N17,M24
|
|
|
Belt width (mm)
|
500,600.650,700,800,1000,1200
1400,1500,1800,2000,2200,2500
|
18",20",24",30",36",40",42"
48",60",72",78",86",94"
|
|
|
Tensile strength
|
EP315/3,EP400/3,EP500/3,EP600/3
EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1250/5
EP600/6,EP1200/6
|
330PIW, 440PIW
|
|
|
Top+Bottom thickness
|
3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,
|
3/16"+1/16", 1/4"+1/16"
|
|
|
Belt thickness
|
3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
|
|
|
|
Belt length
|
10m,20m,50m,100m,200m,250m,300m,500m
|
|
|
|
Belt edge type
|
moulded(sealed) edge or cut edge
|
|
|
140E,190E, 1.5" 2",2.5"
MOQ:1 box
Delivery time: 5 days
Suitable for belt width upto 2600mm
Suitable for both fabric and steel cord conveyor belt
Step 1: Raw material inspection
Moving die rheometer analyzes the characteristics of Rubber Compound
Tensile strength test and elongation test when broken.
Step 2: Advance equipment to guarantee quality from the details
4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.
Length and surface inspection
Thickness inspection
WIdth inspection
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Abrasion test
Adhesion strength test
Tensile strength test
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
