--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
Product Details
Place of Origin: China
Brand Name: SINOCONVE
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: $5.68/pieces 10-49 pieces
Packaging Details: --- Maximum 500m per roll for rubber EP conveyor belts
--- Cassette package is available for abrasion resistant conveyor belts
--- One 20" container can load 6--8 rolls DIN-Y conveyor belts
--- One 40" container can load 8--10 rolls s
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction Works , Energy & Mining |
Standard Or Nonstandard: |
Standard |
Type: |
V-BELT |
Material: |
Rubber, Natural Rubber |
Description: |
EP Conveyor Belts |
Fabric Structure Warp: |
Polyester |
Fabric Structure Weft: |
Polyamid |
Fabric Specs: |
EP300 |
Ply Thickness: |
1.45mm/ply |
Strength(N/mm): |
600/900/1200/1500 |
Cover Thickness Upper: |
1.5-12 |
Cover Thickness Upper Lower: |
0-4.5 |
Belt Width: |
500-2500mm |
Port: |
Ningbo/Shanghai |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction Works , Energy & Mining |
Standard Or Nonstandard: |
Standard |
Type: |
V-BELT |
Material: |
Rubber, Natural Rubber |
Description: |
EP Conveyor Belts |
Fabric Structure Warp: |
Polyester |
Fabric Structure Weft: |
Polyamid |
Fabric Specs: |
EP300 |
Ply Thickness: |
1.45mm/ply |
Strength(N/mm): |
600/900/1200/1500 |
Cover Thickness Upper: |
1.5-12 |
Cover Thickness Upper Lower: |
0-4.5 |
Belt Width: |
500-2500mm |
Port: |
Ningbo/Shanghai |
--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
Top rubber: NR,SBR
Reinforcement: Polyester cord
Buffer rubber: NR,SBR
Bottom rubber: NR,SBR
Outside fabric: Polyester cotton canvas
-- Blending systems
-- Choppers
-- Compressors
-- Crushers
-- Scarifier
Classical V belt:
Type | Top width | Pitch width | Height | Length range | Angle |
mm | mm | mm | mm | ||
Z/M/FM/O | 10 | 8.5 | 6 | 280---2480 | 40° |
A | 13 | 11 | 8 | 330---8000 | 40° |
B | 17 | 14 | 11 | 457---17000 | 40° |
C | 22 | 19 | 14 | 700---17000 | 40° |
D | 32 | 27 | 19 | 1100---17000 | 40° |
E | 38 | 32 | 23 | 3300---17000 | 40° |
Narrow V belt:
Type | Top width | Pitch width | Height | Length range | Angle |
mm | mm | mm | mm | ||
3V | 9.5 | / | 8 | 375--3353 | 40° |
5V | 16 | / | 13.5 | 795---17000 | 40° |
8V | 25.5 | / | 23 | 2500---17000 | 40° |
SPZ | 10 | 8 | 8 | 375---3353 | 40° |
SPA | 13 | 11 | 10 | 475---7200 | 40° |
SPB | 17 | 14 | 14 | 750---17000 | 40° |
SPC | 22 | 19 | 18 | 1350---17000 | 40° |
Other special types:
Type | Top width | Pitch width | Height | Angle |
mm | mm | mm | ||

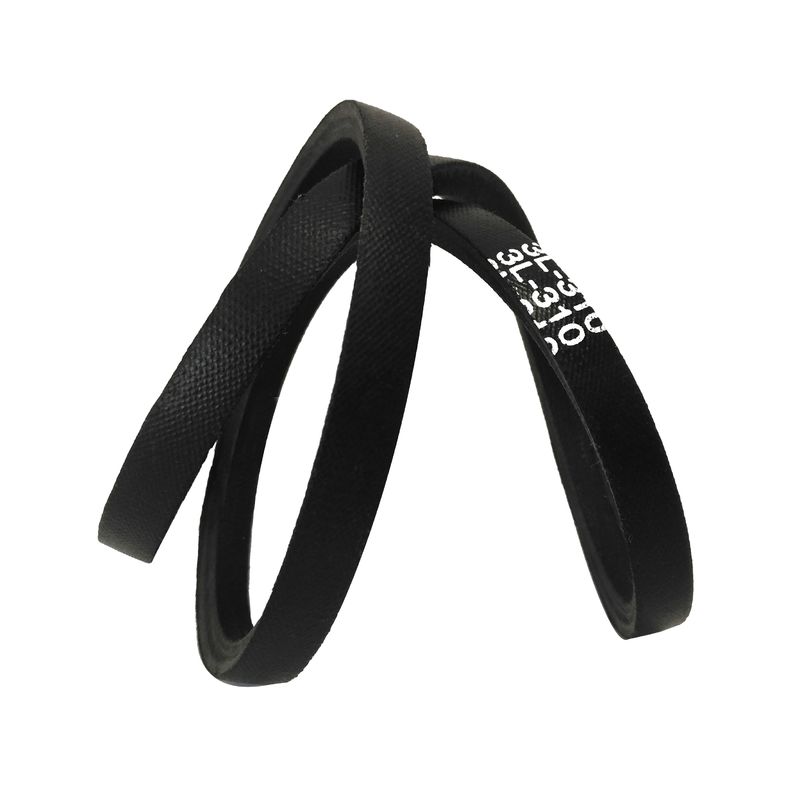

3L | 9.8 | / | 5.6 | 40° |
4L | 12.7 | / | 8 | 40° |
5L | 16.8 | / | 10.5 | 40° |
8.5*8 | 10.5 | 8.5 | 8 | 40° |
Banded Jointed Rubber V belt:
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Low MOQ, 1pc for sample checking is available
Yes. Please inform us your logo or design before mass production
We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
